BeamZ P24 Deco – Box Truss System – 6m x 4m x 3m

£3,199.00

SKU: XXA6150 Categories: ,

In Stock

BeamZ P24 Deco – Box Truss System – 6m x 4m x 3m

Truss system, Box Truss, Lighting Truss, Exhibition Display Truss

Complete Box Truss package system built from the best quality BeamZ P24 Deco trussing which features 8mm braces, a 35mm tube diameter with 1.5mm wall thickness and exterior pole to pole dimensions of 220mm. Made from top-grade EN AW-6060 T6 aluminium, tested to the highest EU safety standards.

These are complete truss systems that come with all the required spigots, pins, spring clips and baseplates.

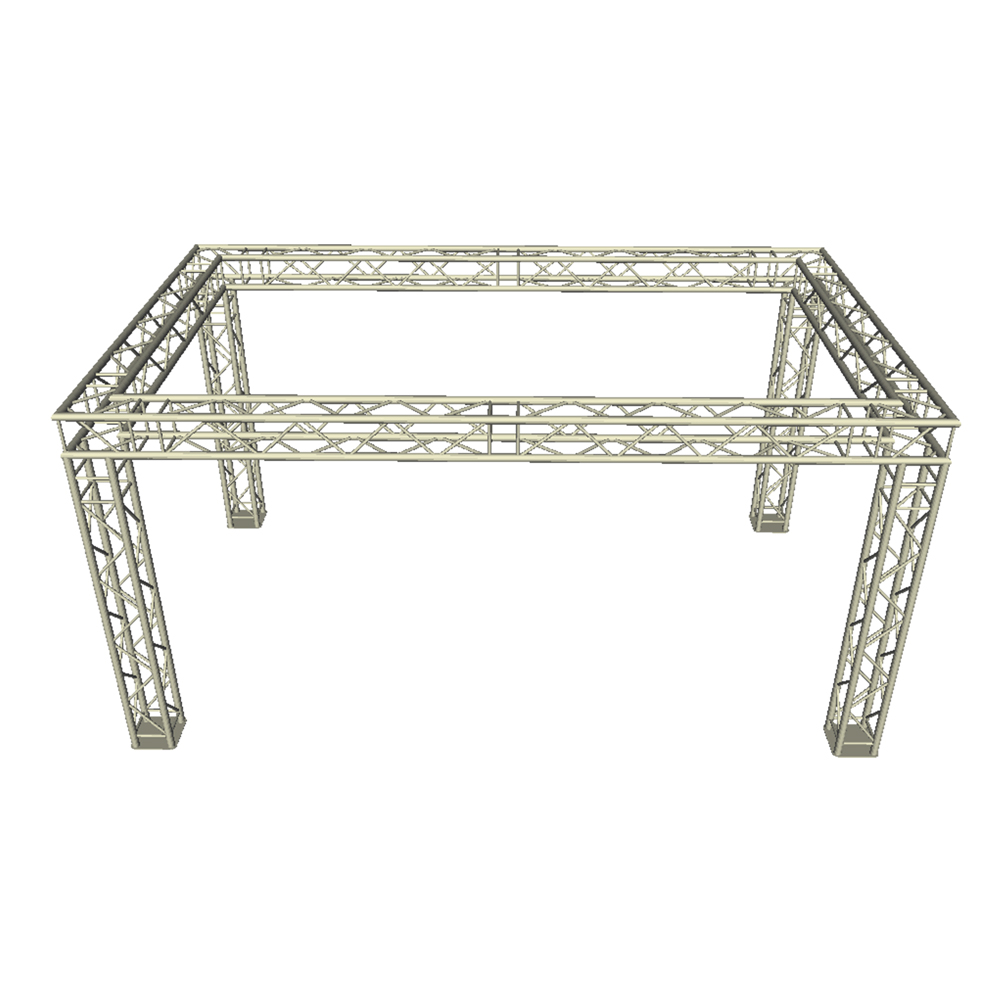

Images are a graphical representation of how the system will look based on standard BeamZ P24 Truss.

Features

  • 35mm Diameter Truss Pipe
  • 8mm Braces
  • 1.5mm Wall Thickness
  • All fittings and fixtures included

Specification

  • Length (Left to Right) – 6m / 6000mm
  • Width (Front to Back) – 4m / 4000mm
  • Height – 3m / 3000mm

Package Contents

  • 4x – 3 Way Corner 90 Degree
  • 10x – 2m / 2000mm Straight
  • 4x – 1m / 1000mm
  • 4x – 0.5m / 500mm Straight
  • 4x – Base Plate Male
  • 88x – Conical Connector Spigot
  • 176x – Safety Pin
  • 176x – Spring Clip
Weight 50 kg
Truss Profile

Square

Trussing Type

BeamZ P24

External Height

3m

Fixing Type

Pin & Spigot

Structure Size

Large Rectangle Truss Display
